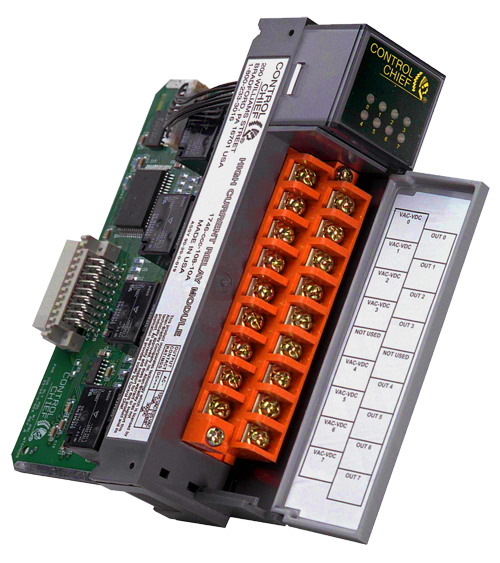

High Current Relay Card

The High Current Relay Output Module is a  cost-effective choice for applications with medium to high current requirements. This module eliminates the need for expensive, bulky intermediate relay panels.

The High Current Relay Output Module is the perfect fit for applications with medium to high current requirements.

Features

8 Normally Open Isolated relays
8 Normally Open Isolated relays
Feedback capability permits continuous monitoring
Feedback capability permits continuous monitoring
AC or DC connectivity available
AC or DC connectivity available
All 8 relays are rated for 10 amperes of continuous current
All 8 relays are rated for 10 amperes of continuous current
Relays are electrically isolated for safe, efficient performance
Relays are electrically isolated for safe, efficient performance
SLCPGhighcurrent

Specifications

Overall Specifications
Output Contact RatingAC - 125 VAC, 10A, 1/4HP
DC - 30VDC, 5A
Backplane Current Draw70 mA - per active relay
650 mA - maximum backplane current
Backplane Voltage Requirements+5 VDC yes
24 VDC no

PRODUCT SPECIFICATIONS ARE FOR REFERENCE ONLY. SUBJECT TO CHANGE WITHOUT NOTICE. CONTACT CONTROL CHIEF FOR VERIFICATION.

Documentation

High Current Relay Card Product Sheet

Customer Connected Booklet
